Bathroom Infrared Heating Lamp

The CR02 Bathroom Infrared Heating Lamp is purpose-built for narrow, small bathrooms measuring 3 to 4 square meters, resolving common pain points of traditional four-lamp bathroom heaters such as cluttered multi-device installation, excessive power waste and overpowered harsh heat. Powered by infrared radiation heating technology, this bathroom heater delivers immediate radiant heat the second it is switched on, with no waiting period for preheating and greatly boosting bathing comfort in cold weather. Its heating system features two independent 275W infrared heating bulbs, creating a combined total heating output of 550W; this modest power load works seamlessly with the thin wiring and low circuit capacity typical of aging residential buildings, eliminating circuit overload risks during simultaneous heating, lighting and ventilation operation.

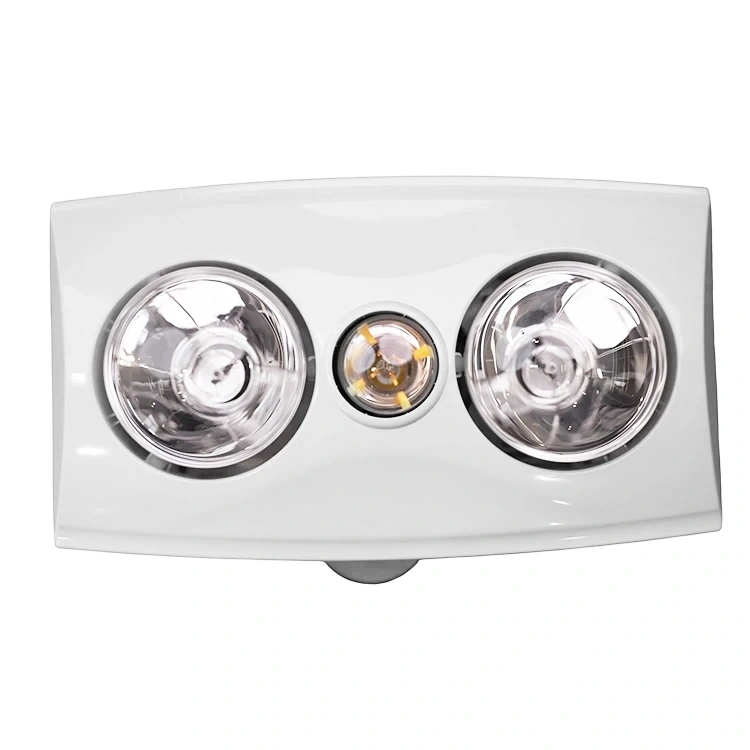

Beyond its core heating performance, the unit integrates two auxiliary functional modules: an 8W central warm light source with a 3000K color temperature, plus a 30W AC ventilation motor system. Three essential bathroom functions—heating, lighting and ventilation—are consolidated into one compact housing. Unlike the costly, space-wasting alternative of installing standalone bathroom lamps and exhaust blowers, this all-in-one Bathroom Infrared Heating Lamp maximizes ceiling space utilization, cuts hardware procurement expenses and speeds up on-site installation work for technicians. The exterior features a smooth curved white plastic panel, arranged with two large infrared heat lamps flanking a central dedicated lighting bulb, forming a clean, minimalist silhouette that complements modern, minimalist and classic bathroom interior styles.

Features

l Gentler Lighting & Superior Eye Protection：Softer light output minimizes glare, far friendlier for the elderly and children compared to the harsh brightness of four-lamp alternatives.

l Mild & Comfortable Heating：Two-lamp design delivers gentle heating that avoids the overbearing warmth of four-lamp models.

l Compact & User-Friendly Design：More streamlined body than four-lamp versions, enabling easier installation and hassle-free bulb replacement.

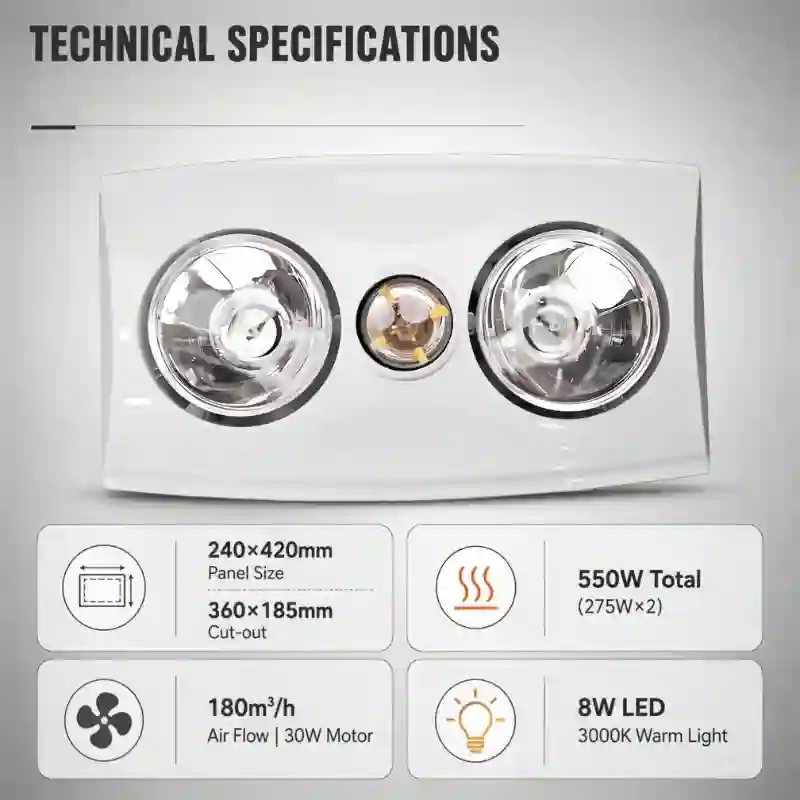

Specifications

Technical Advantages

1. Instant Infrared Radiant Heating Technology Based on physical infrared radiation heat transfer, the Bathroom Infrared Heating Lamp produces usable heat instantly after power activation, with no need to preheat surrounding air. Heat radiates directly onto human skin and surrounding surfaces to rapidly raise local bathing area temperature, reducing energy loss caused by slow air convection heating.

2. Low-Load Safe Circuit Matching Design A total heating power of only 550W creates a mild electrical load that is fully compatible with old-house wiring featuring thin gauge wires and low circuit bearing capacity. It effectively prevents frequent tripping, wire overheating and potential fire hazards when heating, lighting and ventilation run simultaneously.

3. High-Volume Low-Noise Ventilation System The 30W AC motor paired with a 123*58mm large impeller spins at 1340r/min to generate a steady 180m³/h airflow. It rapidly expels water vapor, mildew-causing moisture and unpleasant odors from the bathroom to stop fogged mirrors and wall mold growth, while maintaining quiet operation that will not disrupt household rest.

4. Integrated One-Body Structural Optimization An integrally molded outer shell encapsulates heating, central lighting and ventilation components as a single unit, reducing gaps between separate appliances that trap dust and humid steam. A reinforced sealed structure boosts waterproof and moisture-proof performance in damp bathroom environments, extending the full service lifespan of the Bathroom Infrared Heating Lamp.

5. Standardized Universal Installation Cut-Out The unified 360*185mm ceiling cut-out dimension matches mainstream bathroom ceiling installation standards across Europe, Southeast Asia and North America. Installers skip custom hole modification on-site, drastically shortening construction and fitting time.

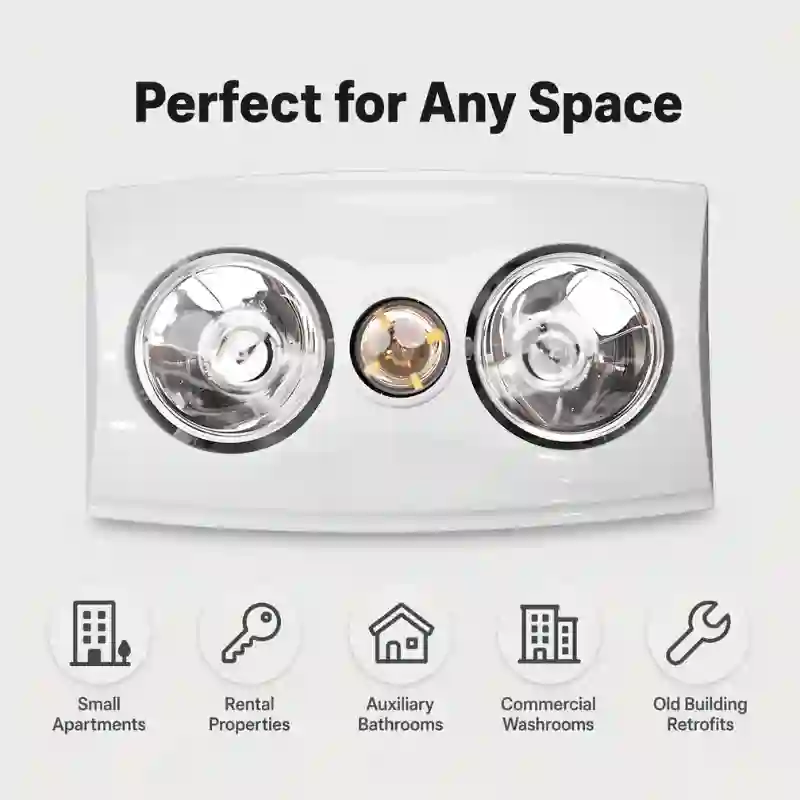

Application Fields

The CR02 Bathroom Infrared Heating Lamp caters to a wide range of global small-space bathroom scenarios, covering both residential and commercial compact washroom demands:

1. Small Apartment Family Bathrooms For urban mini studios, one-bedroom flats and compact homes with 3–4㎡ bathrooms, its low-power energy-saving design and three-in-one integrated functionality solve dual issues of limited ceiling space and high electricity bills from multiple disconnected bathroom appliances.

2. Short-Term Rental & Homestay Washrooms Airbnb homestays, serviced apartments and long-term rental housing prioritize low upfront procurement costs and simple maintenance. This Bathroom Infrared Heating Lamp reduces the total number of bathroom hardware items to purchase, and its user-replaceable bulbs cut down post-stay maintenance labor costs for property management teams.

3. Secondary Auxiliary Bathrooms in Villas & Townhouses Most villas feature secondary small ensuite bathrooms, cloakroom powder rooms and guest washrooms with cramped layouts. The mild heating output of the dual-lamp model avoids overheating in confined small spaces, perfectly matching the low-frequency usage of auxiliary household bathrooms.

4. Small Commercial Public Washrooms Boutique hotels, beauty salons, fitness studio shower zones and office staff restrooms with limited space can adopt this product to deliver heating, lighting and exhaust all from one fixture. It streamlines commercial space decoration layouts and lowers overall equipment investment expenditure.

5. Old Residential Building Renovation Projects Countries worldwide have large stocks of aging residential buildings fitted with outdated low-capacity circuits unable to support high-wattage four-lamp bathroom heaters. The 550W total heating power of this Bathroom Infrared Heating Lamp complies with old circuit load limits, making it the top choice for bathroom renovation retrofits.

Certification & Quality Assurance

1. Global Standard Electrical Safety Certifications All finished CR02 Bathroom Infrared Heating Lamp units pass rigorous electrical safety testing and fully comply with CE, RoHS international household appliance standards. Infrared heating bulbs, central light sources and ventilation motors are sourced from certified upstream manufacturers, with every core component undergoing independent waterproof, insulation and overheat protection testing before assembly.

2. Multi-Stage Strict Factory Inspection The production line enforces three-tier quality control: incoming component inspection, semi-finished assembly inspection and finished product continuous aging testing. Every completed unit undergoes a 4-hour non-stop aging test to validate stable performance of heating, central lighting and ventilation functions, filtering out defective units before packaging.

3. Comprehensive After-Sales Quality Guarantee Chenrui Electric offers a 2-year full-unit warranty for the Bathroom Infrared Heating Lamp. Within the warranty term, free replacement of core components including motors, lamp holders and heating bulbs is provided for non-human-caused faults. Spare infrared heating bulbs and central light bulbs are supplied alongside bulk orders to facilitate quick user replacement.

4. Enhanced Humidity & Corrosion Resistance Quality Control The outer casing is constructed from high-temperature, moisture-resistant engineering plastic, while internal circuit boards are coated with waterproof insulating glue to withstand long-term high-humidity bathroom surroundings. All built-in metal connectors use anti-rust alloy materials to resist corrosion from persistent water vapor, guaranteeing consistent stable operation of the Bathroom Infrared Heating Lamp over years of damp use.
