Low Noise Bathroom Exhaust Fan

Chenrui Fan01 Low Noise Bathroom Exhaust Fan redefines compact ceiling ventilation solutions by merging professional exhaust performance and customizable lighting functionality, eliminating the need for separate ceiling light and vent installations. As a versatile Exhaust Fan built on standardized round ceiling housing, it shares uniform dimensional specs with the Fan02 standalone ventilator, supporting unified 240*240mm ceiling cut-out for seamless construction. Powered by a 20W low-heat DC motor spinning at 1100r/min, this Exhaust Fan moves 300 cubic meters of air per hour to rapidly clear bathroom steam, kitchen grease fumes and indoor stale odors, with refined internal air duct structures that drastically cut operational hum for undisturbed rest and daily use.

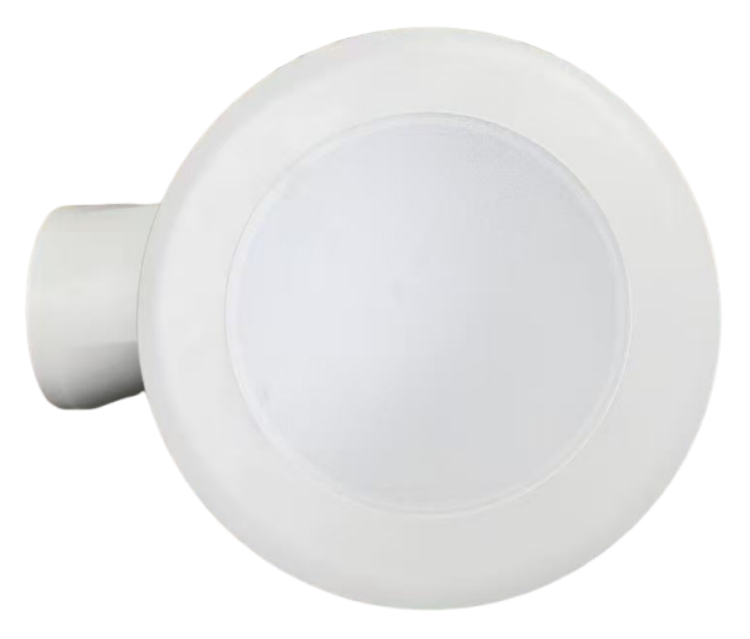

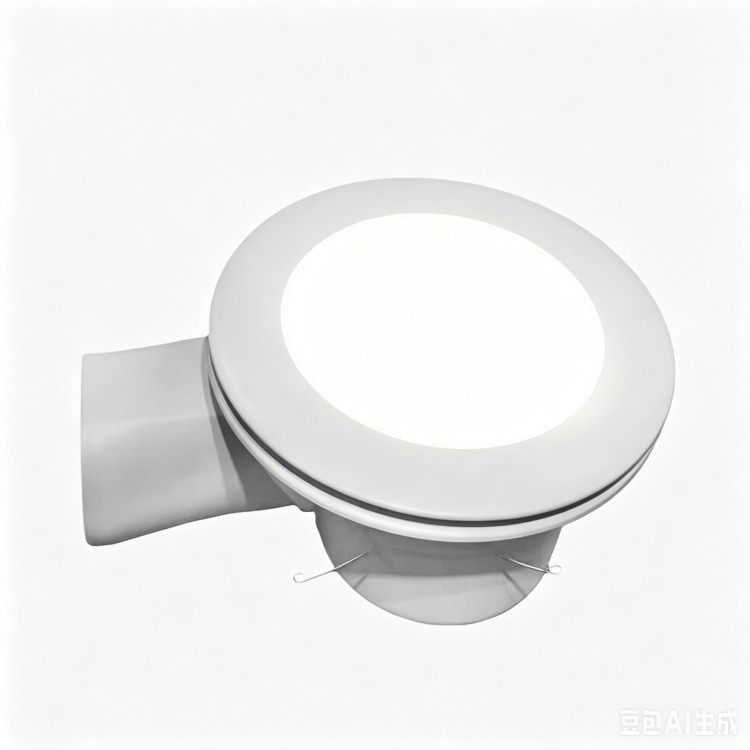

Equipped with a 12W tri-color adjustable LED panel, this Exhaust Fan offers three switchable color temperatures (3000K warm white, 4000K neutral white, 5000K cool white) at 140lm luminous flux, catering to diverse lighting atmosphere demands from relaxing bathing to focused reading. The embedded light panel measures 190190mm with even, flicker-free light distribution, fully sealed alongside the ventilation core with multi-layer moisture-resistant barriers. Unlike single-function exhaust units, Fan01 condenses two core ceiling fixtures into one circular panel unit sized φ27525mm, cutting installation hardware costs and maximizing overhead space for small and medium-sized indoor rooms across Australian households.

Features

1. All-in-one ventilation & dimmable LED lighting design, dual functions in single ceiling fixture

2. SAA certified construction fully meeting Australian electrical and bathroom safety benchmarks

3. 20W high-efficiency low-heat DC motor with 1100r/min stable rotation and extended service lifespan

4. 300m³/h high airflow capacity for rapid damp, fume and odor extraction

5. Optimized air duct and motor assembly to deliver consistent low-noise running performance

6. Triple CCT adjustable LED light (3000K/4000K/5000K) with 12W power and 140lm soft uniform lighting

7. Integrated multi-safety mechanisms: automatic overheat power-off system and full moisture-proof internal structure

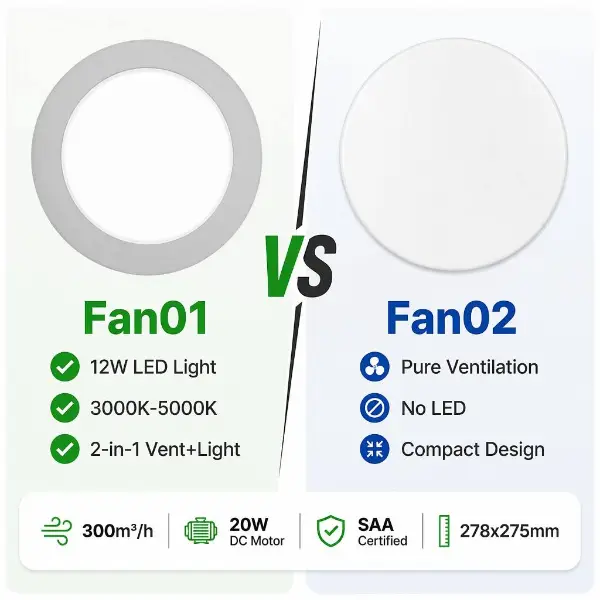

8. Unified standard dimensions matching Fan02 series, universal 240*240mm ceiling cut-out for easy batch installation

9. Lightweight solid plastic housing with total net weight 1.7KG, convenient single-person mounting

10. Consistent packaging and sizing specs for streamlined wholesale, shipping and storage management

Specifications

Technical Advantages

Ultra-Low Noise Operation Core Technology

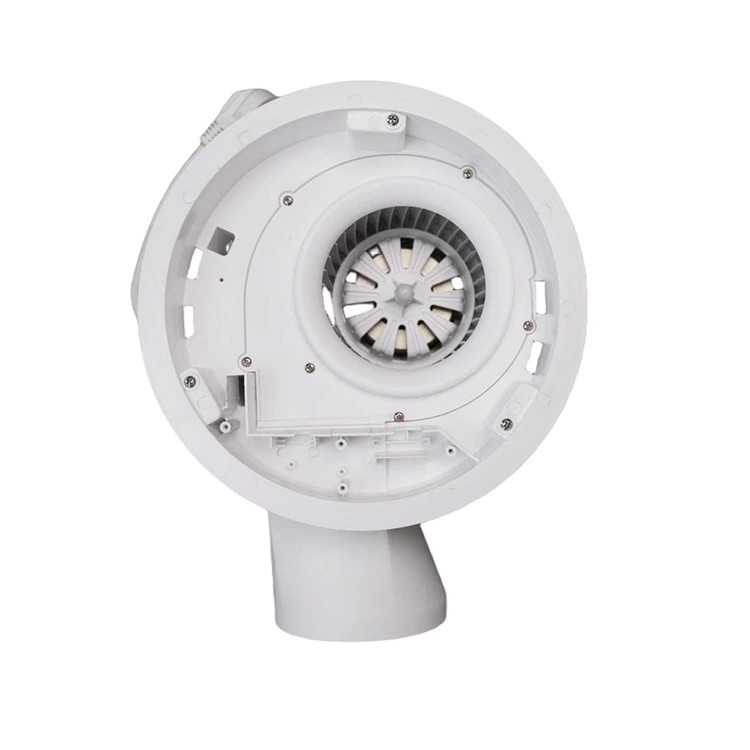

The core competitive edge of this Low Noise Bathroom Exhaust Fan lies in its dual noise reduction system targeting two primary sound sources: motor vibration and airflow turbulence. The DC motor is wrapped in shock-absorbing rubber buffer layers to isolate mechanical vibration transfer to the ceiling panel, while the internal air duct adopts curved streamlined molding to eliminate sharp airflow friction and whistling noise during high-speed air extraction. Even under full 300m³/h airflow load, the unit maintains a quiet running state that will not disrupt sleep, bathing or study activities, a critical upgrade over traditional noisy AC exhaust fans on the Australian market.

Low Heat Long-Life DC Motor System

Unlike conventional AC exhaust motors that generate excessive heat during prolonged operation, the 20W DC motor fitted on Fan01 produces minimal thermal buildup. Low heat output reduces aging speed of internal wiring, plastic components and LED light circuits, greatly extending the overall service life of the Low Noise Bathroom Exhaust Fan. The motor structure also avoids frequent burnout risks caused by bathroom high humidity, delivering stable long-term performance for continuous daily ventilation cycles.

Integrated Dual-Function Space-Saving Design

Traditional indoor renovation requires separate drilling, wiring and mounting for exhaust fans and ceiling lights, which wastes ceiling space and increases construction labor fees. Fan01 combines ventilation and lighting into one circular panel fixture, only requiring one reserved ceiling opening and one wiring circuit. This integrated design shortens installation time by nearly half, making it ideal for compact bathrooms, small bedrooms and narrow study rooms where ceiling layout space is limited. The frosted circular light panel also hides the internal fan structure completely, presenting a minimalist uniform white appearance that matches all modern ceiling decoration styles.

Multi-Layer Safety Protection Technology

Tailored for Australia’s humid bathroom usage scenarios, the Low Noise Bathroom Exhaust Fan adds comprehensive moisture-proof treatment on all internal electronic components, including waterproof coating on motor coils and sealed isolation chambers for LED drive power supplies. A built-in thermal sensor triggers automatic power cut-off once internal temperature exceeds the safety threshold, preventing fire hazards caused by abnormal motor overheating. All internal wiring follows Australian electrical safety standards, with insulated wiring terminals to avoid short-circuit risks in damp environments.

Application Fields

Residential Bathroom Scenarios

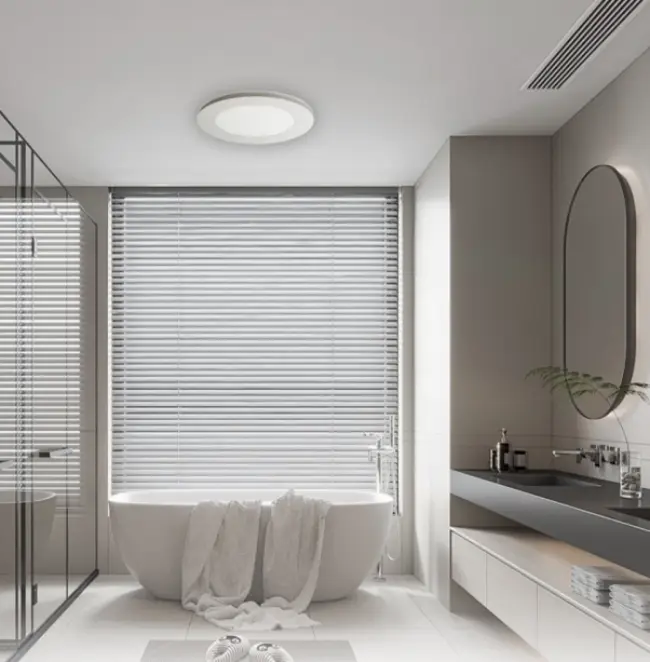

This Low Noise Bathroom Exhaust Fan is the primary solution for Australian family bathrooms, quickly exhausting shower steam to prevent wall mold, mirror fogging and cabinet damp damage. The tri-color LED light adjusts lighting atmosphere for morning makeup, evening bathing and night-time low-light use, removing the need to install an extra bathroom ceiling lamp.

Private Bedroom & Study Room

For quiet rest and reading spaces, the ultra-silent running performance of the Low Noise Bathroom Exhaust Fan avoids disruptive humming during sleep or focused work. It continuously circulates indoor air to expel carbon dioxide and strange indoor odors, while the switchable warm and cool light modes support bedtime relaxation and daytime reading lighting demands.

Small Rental Apartment & Guest Washroom

Rental properties and compact guest bathrooms prioritize simple installation and multi-functional fixtures. Fan01’s unified cut-out size and lightweight structure allow fast replacement of old ceiling vents, and its all-in-one light and fan design cuts down fixture procurement costs for property developers and landlords across Australia.

Small Home Auxiliary Spaces

Laundry rooms, powder rooms and small kitchenettes also benefit from the fan’s 300m³/h airflow capacity, efficiently removing laundry moisture, cosmetic chemical odors and light cooking oil fumes without requiring large heavy-duty ventilation equipment.

Certification & Quality Assurance

Official Australian SAA Certification

Fan01 has completed full SAA electrical safety certification, complying with all Australian national standards for ceiling ventilation and lighting appliances. Every production batch undergoes third-party laboratory testing covering insulation performance, moisture resistance, motor durability and overheat protection functions, ensuring legal and safe sales and installation within the Australian market without compliance risks for retailers, installers and end consumers.

Strict Factory Quality Control System

Each Low Noise Bathroom Exhaust Fan goes through four rounds of full inspection before packaging: raw material plastic strength testing, motor continuous 72-hour aging operation test, LED light color temperature and luminous flux calibration, and full-function ventilation-light combined operation detection. Defective products are eliminated before packaging, and standard uniform packaging with shockproof foam inner padding prevents damage during cross-country sea freight and local land distribution in Australia.
