Intelligent Bathroom Exhaust Fan

This Intelligent Bathroom Exhaust Fan is a premium integrated ceiling solution crafted for contemporary smart living scenes, merging powerful moisture exhaust, multi-mode lighting and wireless audio playback within one streamlined square panel. Constructed with robust full iron casing that resists bathroom steam corrosion, the Bathroom Exhaust Fan eliminates the trouble of separately installing exhaust fans, ceiling lamps and audio devices, greatly simplifying ceiling layout and installation procedures. Its 12.4-inch main body with 13.78-inch large flat panel fits most standard bathroom ceiling openings, delivering quiet and stable operation without disrupting daily rest or bathing relaxation.

Beyond basic air circulation, this Intelligent Bathroom Exhaust Fan upgrades bathroom experience with multi-dimensional smart configurations. Equipped with a built-in precision humidity sensor, the unit automatically activates exhaust mode once indoor humidity exceeds preset thresholds to cut mold and mildew growth. The 1800-lumen adjustable LED system supports neutral white daily lighting and music-synced RGB colorful ambient effects, while the embedded Bluetooth speaker enables wireless music streaming from mobile phones. Wide 110V-240V universal voltage compatibility makes this Bathroom Exhaust Fan adaptable to global household power standards, laying a solid foundation for cross-regional household smart renovation.

Features

1. High-Efficiency Ventilation Performance Equipped with a 36W stable fan motor, the product outputs 230 CFM airflow and 37.4 ft/s air velocity. It quickly discharges bathroom steam, residual odor and humid air within seconds, accelerating indoor air exchange to maintain dry, fresh air environments.

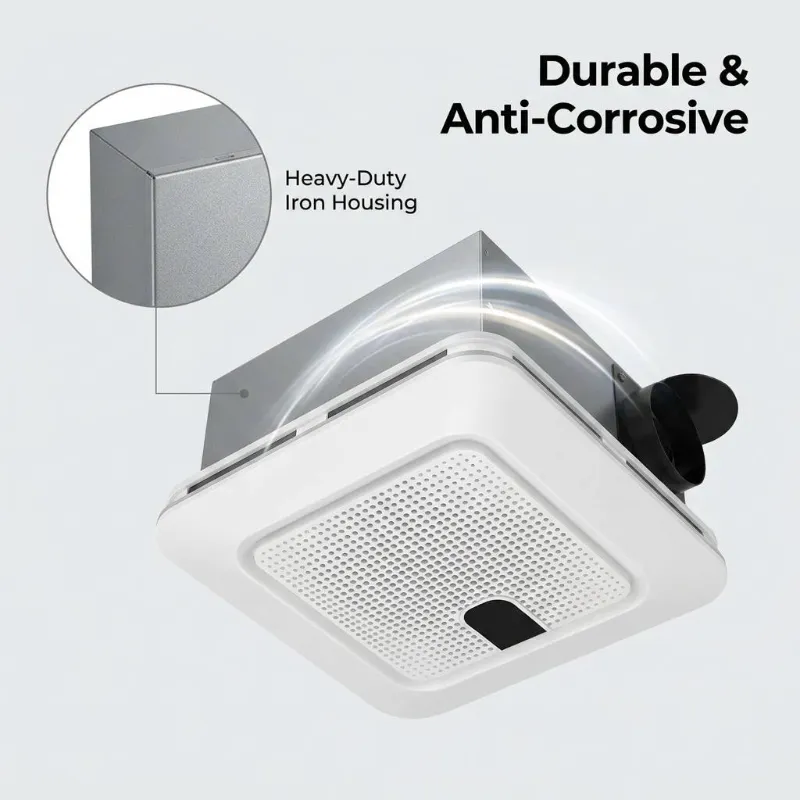

2. Corrosion-Resistant Iron Structural Design The whole machine housing uses thickened iron material with anti-rust coating. Unlike plastic casings prone to aging under long-term damp exposure, this structure extends service life and maintains structural stability in high-humidity spaces.

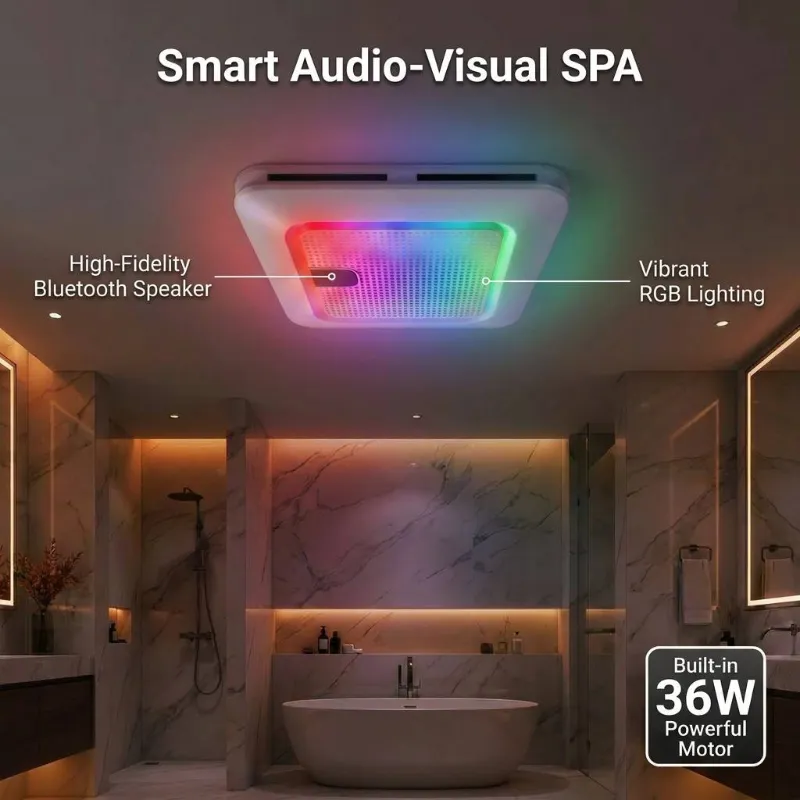

3. Multi-Mode Dimmable LED & Music-Sync RGB Lighting 1800lm high-brightness LED supports segmented power adjustment ranging from 4.4W to 37.3W. Users switch freely between high-power white light for daily cleaning, medium-power neutral light for bathing and low-power soft light for night use. RGB lighting synchronizes with Bluetooth audio beats to create customized decorative atmosphere for bathing.

4. Bluetooth Wireless Audio Playback Built-in high-fidelity speaker module supports fast Bluetooth pairing with smartphones, tablets and other devices. Users stream podcasts, playlists or relaxing background music during showering without extra audio equipment.



5. Intelligent Humidity Auto Regulation Built-in high-sensitivity humidity sensor supports customizable humidity threshold settings via Smart Life APP. The fan automatically turns on exhaust when moisture rises above set values and shuts down after humidity drops to standard levels, realizing unattended moisture management.

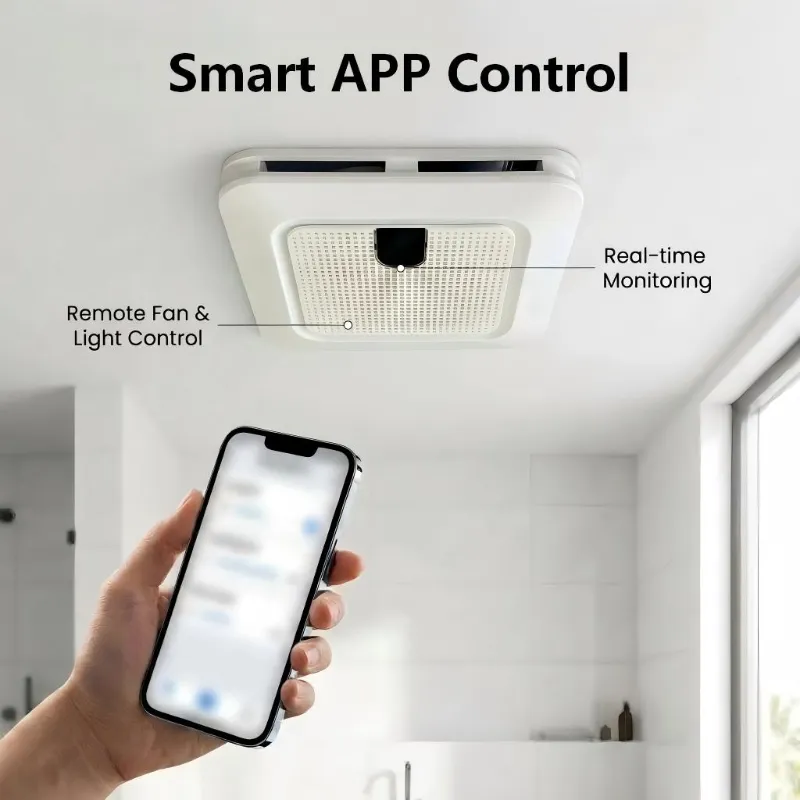

6. All-Round Smart Remote Control System Full functions of this Intelligent Bathroom Exhaust Fan are controllable through the Smart Life mobile APP, including fan speed, light brightness, RGB color switching, humidity trigger values and audio playback. It also matches mainstream voice assistants for hands-free voice command operation.



7. Compact Ceiling-Mount Installation Structure The streamlined square panel with 4-inch standard air outlet fits most ceiling ventilation pipelines. The integrated machine structure reduces installation steps, and the slim 3.94-inch body saves ceiling internal space without occupying extra room height.

Specifications

Model	MGCRH-01
Machine Size	12.4”×11.22”×3.94”
Panel Size	13.78”×13.78”
Air Outlet Size	4”
Material	Iron
Voltage	110V-240V,50/60Hz
Fan Power	36W
LED Power	4.4–37.3W
White Light Power	37.3W
Neutral Light Power	28.5W
Adjustable Light Power	4.4-28.5W
Lumen	1800lm
Airflow	230 CFM
Air Velocity	37.4ft/s
G.W.	4.5kg
Package Size	407*260*390 mm



Unique Technical Advantages

1. Multi-Functional Integrated One-Body Molding Technology Traditional bathroom decoration requires separate purchase and installation of exhaust fans, ceiling lamps and speakers, which brings messy wiring and inconsistent panel styles. This Intelligent Bathroom Exhaust Fan adopts integrated molding technology to integrate ventilation, lighting and audio modules into one unit, unifying panel appearance and simplifying internal wiring layout, lowering overall decoration material and labor costs.

2. Full-Voltage Wide Compatibility Circuit Design The internal drive circuit supports 110V to 240V wide voltage input, compatible with household power grids in North America, Europe, Southeast Asia and other regions. The circuit carries overvoltage and overcurrent protection chips to avoid burnout caused by unstable grid voltage, improving equipment operation safety.

3. Humidity Closed-Loop Automatic Control Algorithm The built-in humidity sensor matches independent closed-loop control algorithm. It collects real-time indoor humidity data, automatically adjusting fan operating duration and wind volume according to preset humidity standards, avoiding unnecessary long-time fan operation to cut household power consumption.

4. Noise Reduction Air Duct & Balanced Fan Blade Technology The fan wheel undergoes dynamic balance calibration during production, paired with silent air duct buffer structure. While maintaining 230 CFM high airflow, it effectively reduces operating vibration and wind noise, ensuring quiet use in late-night bathing scenarios.

5. Music-Link RGB Synchronous Light Control Chip Special light control chip realizes real-time synchronization between RGB color flashing and audio frequency. The light color rhythm changes with music beats, creating immersive spa-style bathing atmosphere without additional atmosphere light accessories.

Application Fields

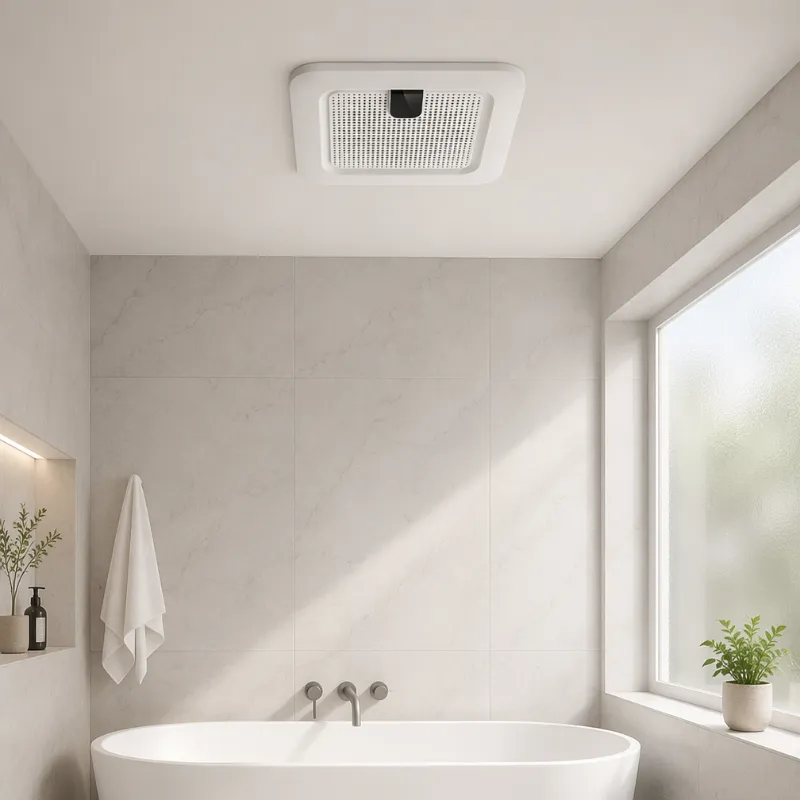

1. Household Indoor Bathrooms This Intelligent Bathroom Exhaust Fan serves as the core ventilation and lighting fixture for family master bathrooms, secondary bathrooms and en-suite shower rooms, solving humid air, mold growth and single lighting problems in daily bathing spaces.

2. Small Home Kitchens For compact apartments with mini open kitchens, the high airflow exhaust function quickly removes cooking oil fumes and peculiar smells, while the dimmable LED light provides auxiliary kitchen local illumination.

3. Home Office & Small Recreation Rooms It acts as auxiliary ventilation equipment for small home offices and leisure rooms, eliminating indoor odor and stuffiness; RGB lighting and Bluetooth audio build comfortable rest and entertainment environments.

4. Short-Term Rental & Homestay Bathroom Spaces For vacation homestays, apartment rentals and hotel guest bathrooms, the all-in-one smart design upgrades accommodation experience. APP remote control enables property managers to adjust equipment status remotely, reducing daily maintenance workload.

5. Light Commercial Mini Spa & Shower Rooms Small commercial shower spaces and mini spa rooms adopt this product to realize integrated ventilation, atmosphere lighting and background music, enhancing customer experience without complicated equipment collocation.
