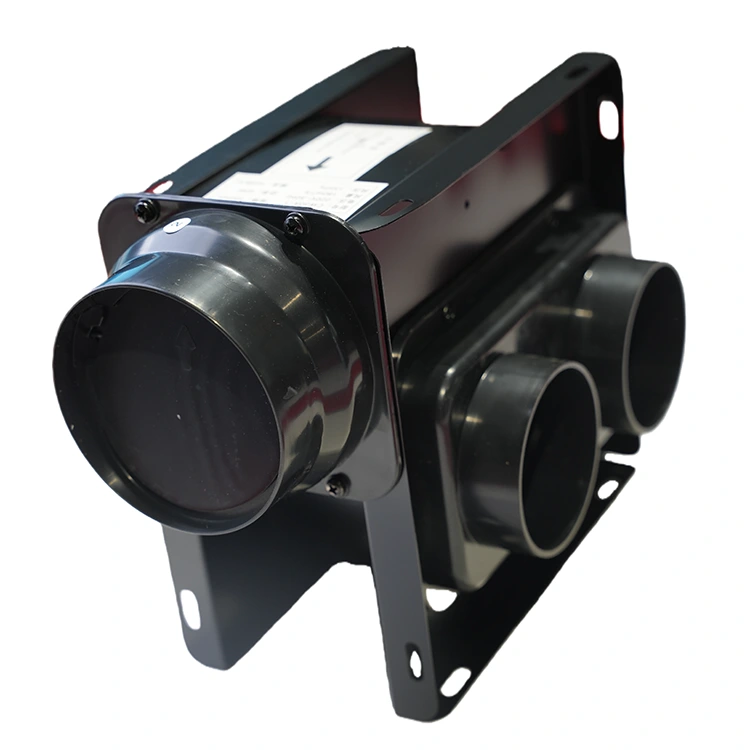

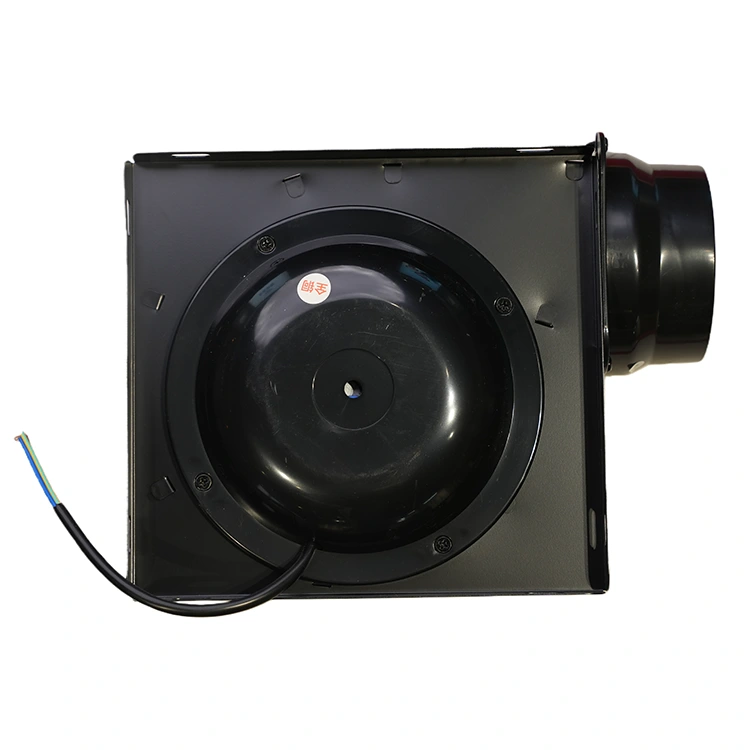

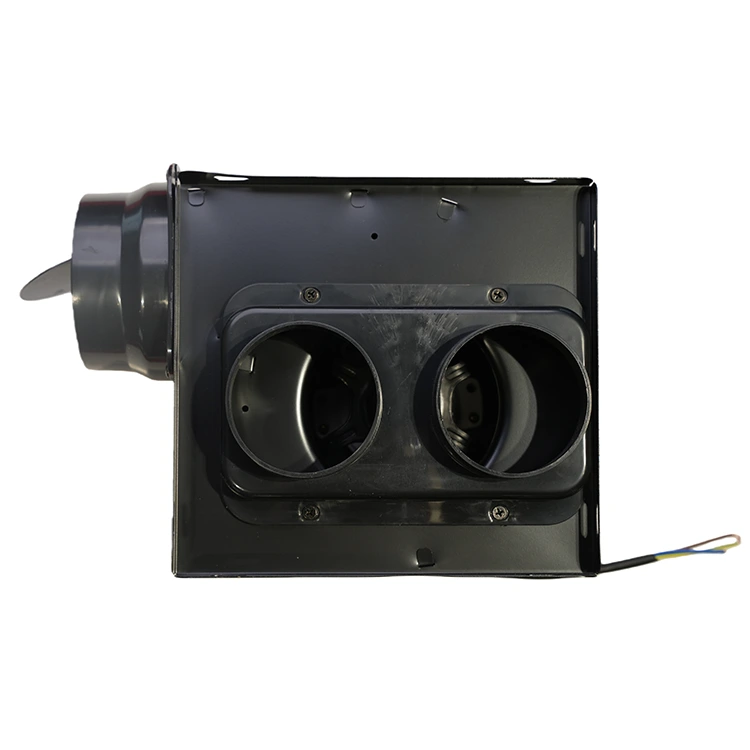

2 Inlet Iron Ventilation Fan
Model:CR-30A-2
As a premier manufacturer and supplier of heavy-duty ventilation systems, Jiaxing Chenrui Electrical Technology Co., Ltd. delivers the 2 Inlet Iron Ventilation Fan, specifically engineered for high-demand industrial and commercial environments. Distinguishing itself with a robust all-iron housing and reinforced impeller, this series offers superior structural integrity and heat resistance compared to plastic alternatives. By leveraging our in-house motor winding and vertically integrated production, we ensure powerful static pressure for synchronized air extraction from two separate zones through a single high-performance unit. Certified by global safety standards including UL, CE, and SAA, our iron ventilation fans provide international contractors and engineering partners with a rugged, fire-resistant, and high-airflow solution that exemplifies the precision and reliability of modern industrial engineering.
This 2 Inlet Iron ventilation fan can ventilate two spaces at the same time, which is efficient, space-saving and more cost-effective. It is made of engineering-grade iron shell material, which is high-temperature resistant, anti-deformation, sturdy and durable.
The 2 Inlet Iron Ventilation Fan adopts a two-in-one-out design, with one dragging two for exhaust. It has a pure copper coil, high wind pressure, low temperature rise, long service life and low failure rate. It is suitable for long pipeline installation and can exhaust stably even over long distances.
Parameters
|
place of origin |
Zhejiang,China |
app-controlled |
No |
|
application |
Hotel,Household,Commercial |
noise |
≤ 50 dB |
|
power source |
A.C. Source |
number of blades |
Without Vane |
|
size |
100mm ( Duct Connection Size ) |
brand name |
Chenrui |
|
material |
Metal |
packaging types |
Corrugated Box |
|
power (w) |
40 |
warranty |
1 Year |
|
model number |
CR-30A-2 |
Product Name |
AC Split Duct Exhaust Fan ( 2 Inlets &1 Outlet ) |
|
Usage |
Household,Commercial,Hotel |
Installation |
Ceiling |
|
Noise |
42dB |
Fan Wheel Diameter (mm) |
120 |
|
Air Pressure (Pa) |
135 |
Air Volume (m3/h) |
180 |
|
Duct Connection Size (mm) |
100 |
Control Mode (Speed Gears) |
1Gear |
|
Applicable Area (㎡) |
18-22 |
||
Packaging and delivery
|
Selling Units |
Single item |
Single package size |
72.5X25.5X48.5 cm |
|
Single gross weight |
2.300 kg |
||
Features
Compared with DC motors, this 2 Inlet Iron Ventilation Fan with an all-copper motor has a lower price and cost, and can meet basic ventilation needs. The working motor has a noise level of 42dB and an air volume of 180m³/h. It is suitable for suspended ceilings, hotels, kitchens, bathrooms, and engineering projects. It is powerful and stable, ensuring worry-free ventilation. With one dragging two ventilation, it is durable and more hassle-free.
